Pressure range at 20°C	1 × 10E-8 mbar to 1.2 bar (abs)
Leak rate to outside at 20°C	1 × 10E-9 mbar l/s
Cycles until first service	2’000’000 (unheated and under clean conditions)
Admissible operating temperature	+10℃ to +150℃
Mounting position	Any Control unit for ISO-KF version needs support when mounted on horizontal piping and control unit does not hang.

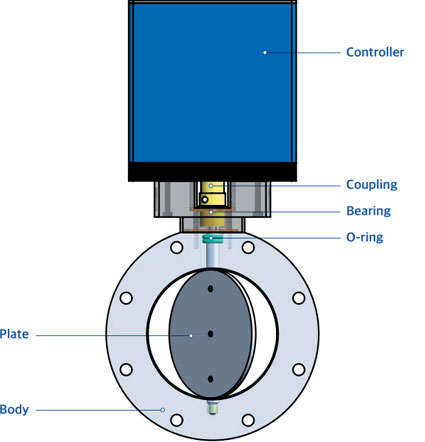

Wetted materials - Body, plate - Shaft - Plate screws	Body, Plate - Stainless steel 304 , Aluminum 6061 Shaft - Stainless steel 316L Plate screws - Stainless steel 304
- Shaft seal	VitonⓇ (standard). Other materials available on request. Seal materials are v declared on dimensional drawing of specific valve ordering number
- Slide bearing for shaf	glidurⓇ X

Power input 1)		+24 VDC (±10%) @ 0.5V pk-pk max.[connector: POWER]
Power Consumtion		80 W max. (operation of valve with max. load) without PFO4)
Sensor power supply 2)		+24 VDC / 1500 mA max. [connector: POWER] ±15 VDC (±5%) / 667 mA max. [connector:SENSOR]
- Input - Output
Sensor input		0-10 VDC / Ri>100 kΩ [connector: SENSOR] 0.16 mV 1 ms
- Signal input - ADC resolution - Sampling time
Digital inputs 3)		±24 VDC max
Digital outputss 3)		70 VDC or 70 V peak max. 0.5 ADC or 0.5 A peak max. 10 W max.
- Input voltage - Input current - Breaking capacity
Ambient temperature		0 ℃ to +50 ℃ max. (<35 ℃ recommended)
Pressure control accuracy		5 mV or 0.1% of setpoint, whichever is greater
Position resolution / position control capability		20000
Actuating time	closing	0.3 s typ.
	opening	0.3 s typ.
Utilizable valve torque		2.5 Nm

¹⁾ Internal overcurrent protection by a PTC device.
²⁾ Refer to chapter «Sensor supply concepts» for details.
³⁾ Refer to chapter «Schematics» for details.
