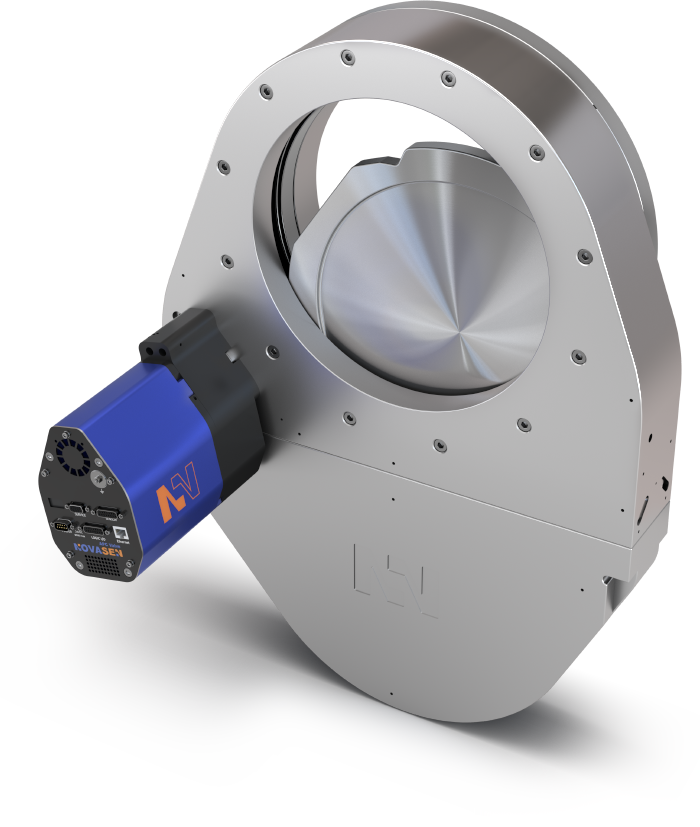

APC Pendulum valve
PENDULUM
DN320
| DN (nominal I.D.) |
Conductance in open position (molecular flow) |
Minimum controllable conductance (molecular flow) |
max. differential pressure on the plate | max. differential pressure during operation | Compressed air min. - max. overpressure | operating time for throttling | typical closing / opening time open > closed | typical closing / opening time closed > open | Weight (approx.) |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | ls-1 | ls-1 | mbar | mbar | bar | psi | s | s | s | kg | lbs |
| 320 | 10 | 30,000 | 22 | 1,200 | 5 | 4-7 | 58-102 | 1.1 | 5 | 6 | 48 | 106 |
