product

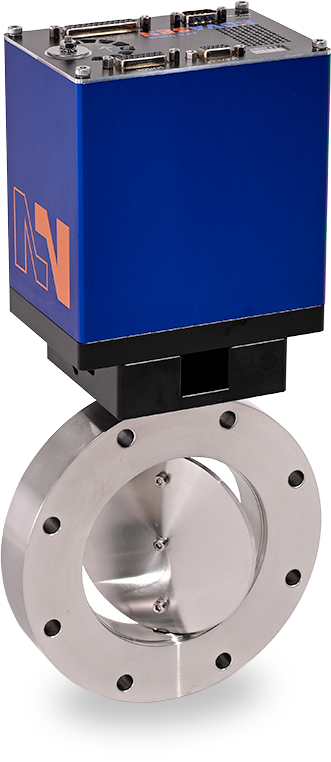

BUTTERFLY
DN100
| DN (nominal I.D.) |
Conductance in open position (molecular flow) |
Minimum controllable conductance (molecular flow) |
Max. differential pressure | Typical closing / opening time | Weight(approx.) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Aluminum | Stainless steel | ||||||||
| mm | inch | ls-1 | ls-1 | mbar | s | kg | lbs | kg | lbs |
| 100 | 4 | 1,400 | 0.85 | 800 | 0.3 | 3.6 | 7.9 | 6.1 | 13.4 |
