product

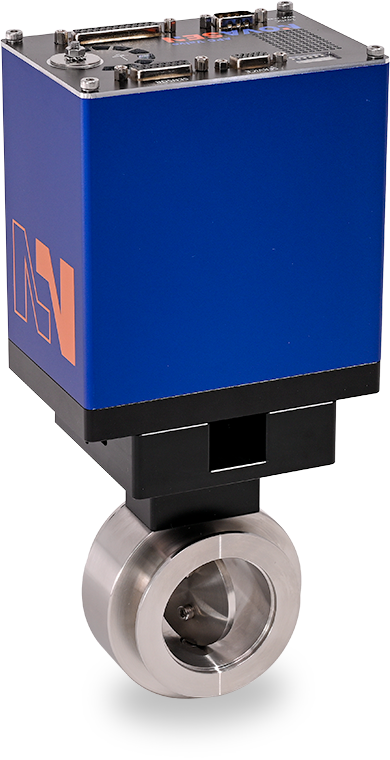

BUTTERFLY
DN50
| DN (nominal I.D.) |
Conductance in open position (molecular flow) |
Minimum controllable conductance (molecular flow) |
Max. differential pressure | Typical closing / opening time | Weight(approx.) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Aluminum | Stainless steel | ||||||||
| mm | inch | ls-1 | ls-1 | mbar | s | kg | lbs | kg | lbs |
| 50 | 2 | 150 | 0.3 | 1,000 | 0.3 | 2.9 | 6.4 | 4.1 | 9.0 |
