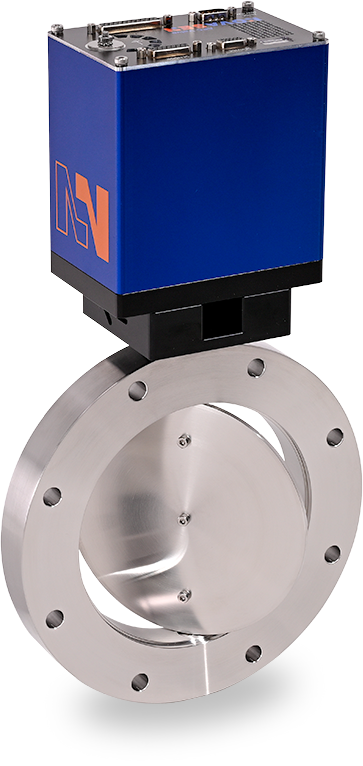

BUTTERFLY
DN160
| DN (nominal I.D.) |
Conductance in open position (molecular flow) |
Minimum controllable conductance (molecular flow) |
Max. differential pressure | Typical closing / opening time | Weight(approx.) | ||||
|---|---|---|---|---|---|---|---|---|---|
| Aluminum | Stainless steel | ||||||||
| mm | inch | ls-1 | ls-1 | mbar | s | kg | lbs | kg | lbs |
| 160 | 6 | 3,800 | 1.7 | 300 | 0.3 | 4.3 | 9.5 | 8.3 | 18.3 |
